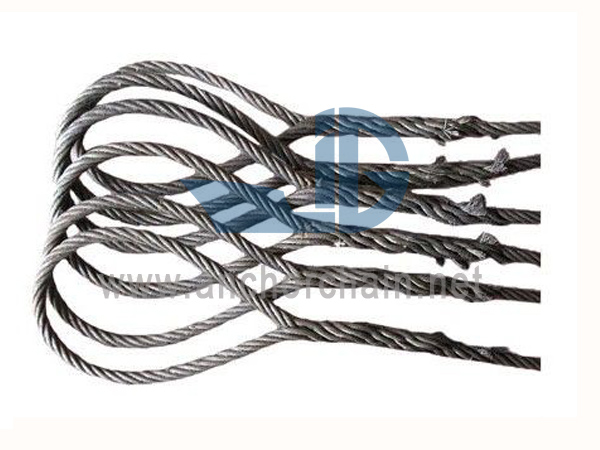

Spliced Steel Wire Rope SlingSpliced Model (D-without thimble, E-with thimble).Steel Wire Rope Core Type (F-FC, W-IWRC)06-Steel Wire Rope Sling.L-Steel Wire Rope epektibong haba.Ang detalye ng ang steel wire rope na ginagamit ng sumusunod na working load sa talahanayan:Dia 6mm-60mm gamitin ang construction ng 6*37(b)-1670;Dia 62mm-120mm gamitin ang construction ng 8*61(b)-1670:Dia 122mm -190mm gamitin ang konstruksiyon ng 8*91(ab)-1670;
V-Steel Wire Rope Sling.
Spliced Model (D-walang didal, E-may didal).
Steel Wire Rope Core Type (F-FC, W-IWRC)
06-Bakal Wire Rope Sling.
L-Steel Wire Rope epektibong haba.
Ang detalye ng steel wire rope na ginagamit ng sumusunod na working load sa talahanayan:
Dia 6mm-60mm gamitin ang construction ng 6*37(b)-1670;
Dia 62mm-120mm gamitin ang pagbuo ng 8*61(b)-1670:
Dia 122mm-190mm gamitin ang construction ng 8*91(ab)-1670;
Ang iba't ibang konstruksyon ng lubid ay nangangahulugan ng iba't ibang working load, maaari nating kalkulahin ang working load gamit ang steel wire rope construction na kinakailangan ng customer.
Ang breaking load ng lambanog ay 5 beses ng working load nito.
Ayon sa Standard GB/T16271-1996.
| Uri ng mga produkto | Dia ng lubid(d) （mm） |
Limitasyon ng pagkarga sa pagtatrabaho | Tinatayang.mata Ength A（mm） |
||
| FC | IWR | kN | kN | ||
| VAF06 | VBW06 | 6 | 3.2 | 3.4 | 180 |
| VAF07 | VBW07 | 7 | 4.3 | 4.7 | 190 |
| VAF08 | VBW08 | 8 | 5.7 | 6.1 | 210 |
| VAF09 | VBW09 | 9 | 7.2 | 7.8 | 230 |
| VAF10 | VBW10 | 10 | 8.9 | 6.9 | 230 |
| VAF11 | VBW11 | 11 | 11 | 12 | 250 |
| VAF12 | VBW12 | 12 | 13 | 14 | 260 |
| VAF13 | VBW13 | 13 | 15 | 16 | 260 |
| VAF14 | VBW14 | 14 | 17 | 19 | 280 |
| VAF16 | VBW16 | 16 | 23 | 24 | 320 |
| VAF18 | VBW18 | 18 | 29 | 31 | 360 |
| VAF20 | VBW20 | 20 | 35 | 38 | 400 |
| VAF22 | VBW22 | 22 | 43 | 46 | 440 |
| VAF24 | VBW24 | 24 | 51 | 55 | 480 |
| VAF26 | VBW26 | 26 | 60 | 65 | 520 |
| VAF28 | VBW28 | 28 | 69 | 75 | 560 |
| VAF30 | VBW30 | 30 | 80 | 86 | 600 |
| VAF32 | VBW32 | 32 | 91 | 98 | 640 |
| VAF34 | VBW34 | 34 | 102 | 110 | 680 |
| VAF36 | VBW36 | 36 | 115 | 124 | 720 |
| VAF38 | VBW38 | 38 | 128 | 138 | 760 |
| VAF40 | VBW40 | 40 | 142 | 153 | 800 |
| VAF42 | VBW42 | 42 | 157 | 169 | 840 |
| VAF44 | VBW44 | 44 | 172 | 185 | 880 |
| VAF46 | VBW46 | 46 | 187 | 203 | 920 |
| VAF48 | VBW48 | 48 | 203 | 220 | 960 |
| VAF50 | VBW50 | 50 | 221 | 240 | 1000 |
| VAF52 | VBW52 | 52 | 239 | 259 | 1040 |
| VAF54 | VBW54 | 54 | 258 | 279 | 1080 |
| VAF56 | VBW56 | 56 | 277 | 301 | 1120 |
| VAF58 | VBW58 | 58 | 298 | 322 | 1160 |
| VAF60 | VBW60 | 60 | 319 | 345 | 1200 |
| VDF62 | VDW62 | 62 | 241 | 286 | 1240 |
| VDF64 | VDW64 | 64 | 257 | 304 | 1280 |
| VDF66 | VDW66 | 66 | 274 | 324 | 1320 |
| VDF68 | VDW68 | 68 | 291 | 344 | 1360 |
| VDF70 | VDW70 | 70 | 308 | 365 | 1400 |
| VDF72 | VDW72 | 72 | 326 | 386 | 1440 |
| VDF74 | VDW74 | 74 | 344 | 407 | 1480 |
| VDF76 | VDW76 | 76 | 363 | 430 | 1520 |
| VDF78 | VDW78 | 78 | 383 | 453 | 1560 |
| VDF80 | VDW80 | 80 | 402 | 476 | 1600 |
| VDF82 | VDW82 | 82 | 423 | 500 | 1640 |
| VDF84 | VDW84 | 84 | 444 | 525 | 1680 |
| VDF86 | VDW86 | 86 | 465 | 550 | 1720 |
| VDF88 | VDW88 | 88 | 487 | 576 | 1760 |
| VDF90 | VDW90 | 90 | 509 | 603 | 1800 |
| VDF92 | VDW92 | 92 | 532 | 630 | 1840 |
| VDF94 | VDW94 | 94 | 556 | 657 | 1880 |
| VDF96 | VDW96 | 96 | 579 | 686 | 1920 |
| VDF98 | VDW98 | 98 | 604 | 714 | 1960 |
| VDF100 | VDW100 | 100 | 629 | 744 | 2000 |
| VDF102 | VDW102 | 102 | 654 | 774 | 2040 |
| VDF104 | VDW104 | 104 | 680 | 805 | 2080 |
| VDF106 | VDW106 | 106 | 707 | 836 | 2120 |
| VDF108 | VDW108 | 108 | 733 | 868 | 2160 |
| VDF110 | VDW110 | 110 | 761 | 900 | 2200 |
| VDF112 | VDW112 | 112 | 789 | 933 | 2240 |
| VDF114 | VDW114 | 114 | 817 | 967 | 2280 |
| VDF116 | VDW116 | 116 | 846 | 1001 | 2320 |
| VDF118 | VDW118 | 118 | 876 | 1036 | 2360 |
| VDF120 | VDW120 | 120 | 905 | 1071 | 2400 |
| VDF122 | VDW122 | 122 | 1006 | 1252 | 2440 |
| VDF124 | VDW124 | 124 | 1039 | 1294 | 2480 |
| VDF126 | VDW126 | 126 | 1074 | 1336 | 2520 |
| VDF128 | VDW128 | 128 | 1108 | 1378 | 2560 |
| VDF130 | VDW130 | 130 | 1143 | 1422 | 2600 |
| VDF132 | VDW132 | 132 | 1179 | 1467 | 2640 |
| VDF138 | VDW138 | 138 | 1288 | 1605 | 2760 |
| VDF140 | VDW140 | 140 | 1326 | 1650 | 2800 |
| VDF142 | VDW142 | 142 | 1363 | 1695 | 2840 |
| VDF144 | VDW144 | 144 | 1402 | 1740 | 2880 |
| VDF146 | VDW146 | 146 | 1441 | 1800 | 2920 |
| VDF148 | VDW148 | 148 | 1482 | 1845 | 2960 |
| VDF150 | VDW150 | 150 | 1515 | 1890 | 3000 |
