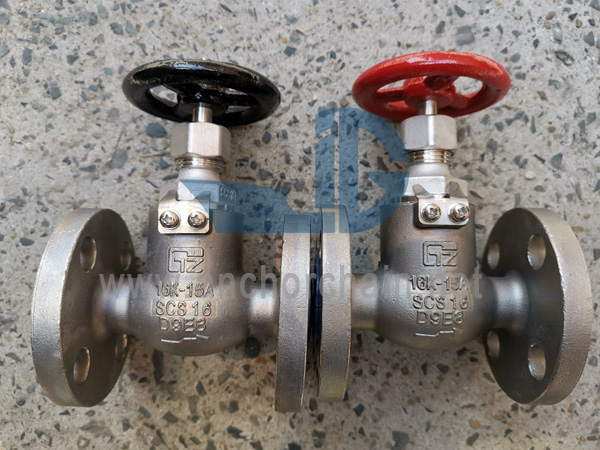

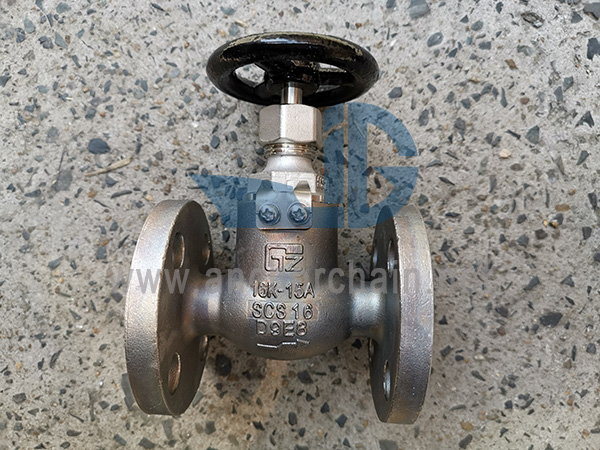

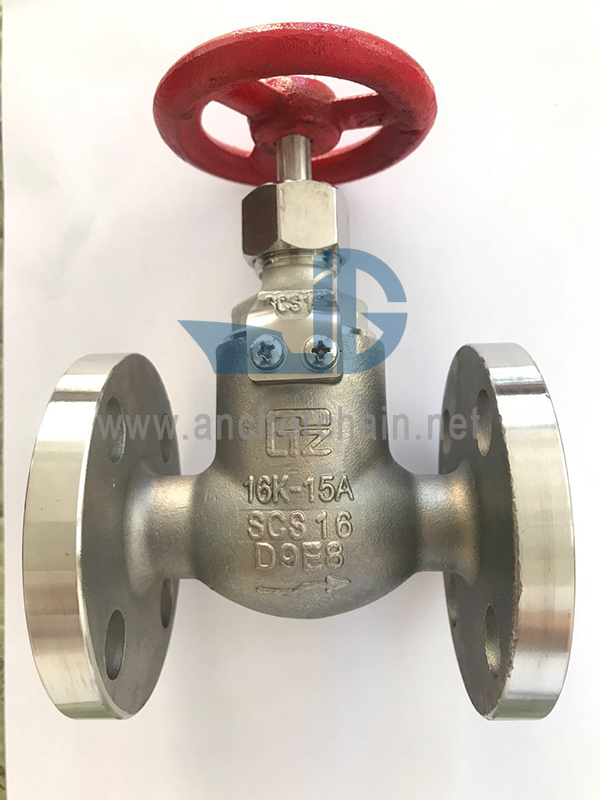

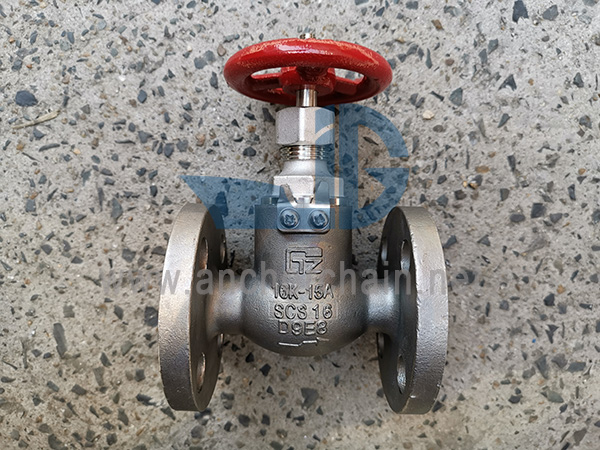

JIS F 7301 5K SCS16 Stainless Steel Globe Valve

JIS F 7301 5K SCS16 Stainless Steel Globe ValvesMarine Stainless Steel Globe Valve o Marine Brass Globe Valve ay maaaring tawaging Marine Stainless Steel/Brass Stop Valve.Function: Buksan/Isara ang pipe systemPamantayang Disenyo: JIS F7301-1996

Magpadala ng Inquiry

Paglalarawan ng Produkto

JIS F 7301 5K SCS16 Stainless Steel Globe Valve
Ang Marine Stainless Steel Globe Valve o Marine Brass Globe Valve ay maaaring tawaging Marine Stainless Steel/Brass Stop Valve.
Function: Buksan/Isara ang pipe system
Pamantayan sa Disenyo: JIS F7301-1996
Pamantayan sa Pagsubok: JIS F7400-1996
Presyon ng Pagsubok: Katawan-1.05Mpa, Upuan-0.77Mpa
Sukat ng Flange ayon sa JIS B2220-5K

*DN15-DN40 na may screwed na bonnet, DN50-DN65 na may bolted na bonnet

Pangunahing materyal:
1-Katawan: Hindi kinakalawang na aseroï¼ˆSCS16ï¼‰/SUS316L
2-Disc: Hindi kinakalawang na aseroï¼ˆSCS16ï¼‰/SUS316L
3-Stem: Hindi kinakalawang na aseroï¼ˆSCS16ï¼‰/SUS316L
4-Bonnet: Hindi kinakalawang na aseroï¼ˆSCS16ï¼‰/SUS316L
5-Handwheel: Cast Iron (FC200)

Listahan ng Pangunahing Sukat(mm):

IMPA Code	Sukat	Harap-harapan (L)	Diam ng flange. (D)	Pitch (C)	Hindi ng Bolt Hole	h	t	H	D2
750121	15	100	80	60	4	12	9	130	80
750122	20	110	85	65	4	12	10	140	100
750123	25	120	95	75	4	12	10	160	125
750124	32	140	115	90	4	15	12	170	125
750125	40	160	120	95	4	15	12	190	140
750126	50	210	130	105	4	15	14	235	140
750127	65	250	155	130	4	15	14	260	160
